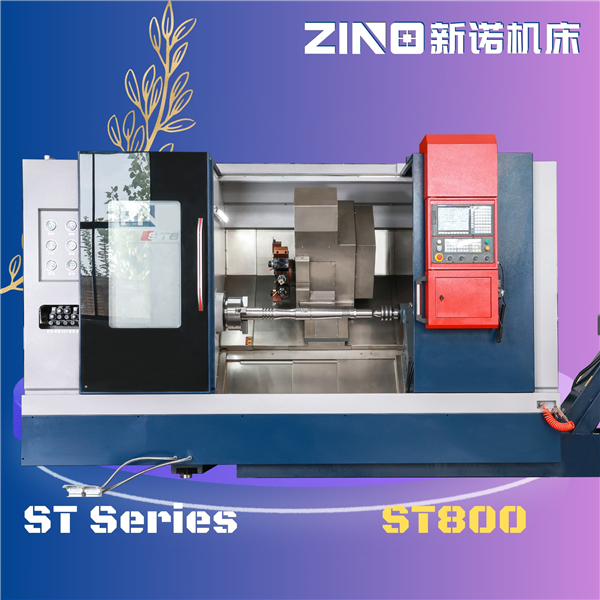

St800cy-1500 Slant Bed CNC Lathe Machine with Hard Rail and Driven Tool Basic Info.
Model NO. :St800
Controller :GSK988ta
Max. Swing Over Bed: Φ800mm
Distance Between Centers:1600mm
Hydraulic Chuck:320mm(12′′)
Spindle Bore:105mm ( 90mm After Hydraulic Chuck )
Max. Process Length:1500mm
Spindle Motor:15kw GSK Servo Motor
Spindle Seed:3000rpm
Max. Swing Over Cross Slide:Φ600mm
Turret:12 Power Turret (32X32mm)
Spindle Nose:A2-11
Tailstock:Hydraulic Tailstock
Transport Package:Fumigation Package
Specification:4.50*2.27*2.38 M
Trademark:ZINO
Origin:Jiangsu Province
HS Code:8458110090
Production Capacity:100 Pieces / Year
The hot selling products of ZINO factory include Numerical control lathe,vertical machining center 1160,machining center 850,VMC1160,VMC850,lathe C0636,conventional lathe CS6250,Manual lathe C6266,ordinary lathe GH1440,lathe GH1440K,lathe CM6241,common lathe SN50,TOS,torno C0636,torno CS6250,torno GH1440K,cnc lathe machine CK6150,cnc lathe machine CK6166H, cnc lathe CK300,turning machine CK500,Inclined bed CNC lathe TC500 and other series of products
